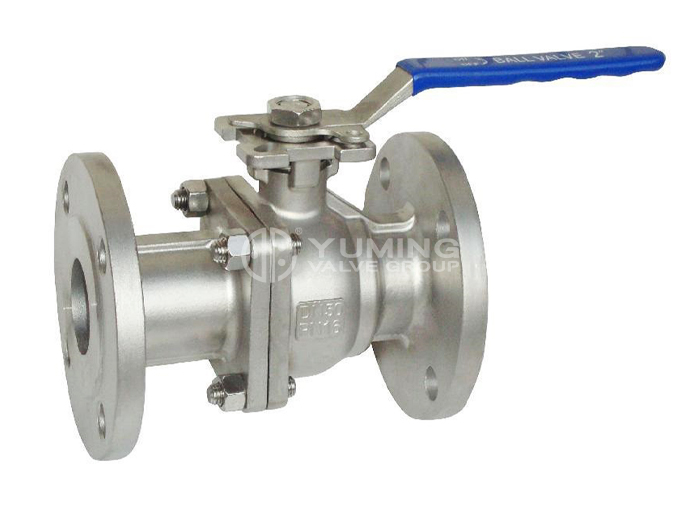

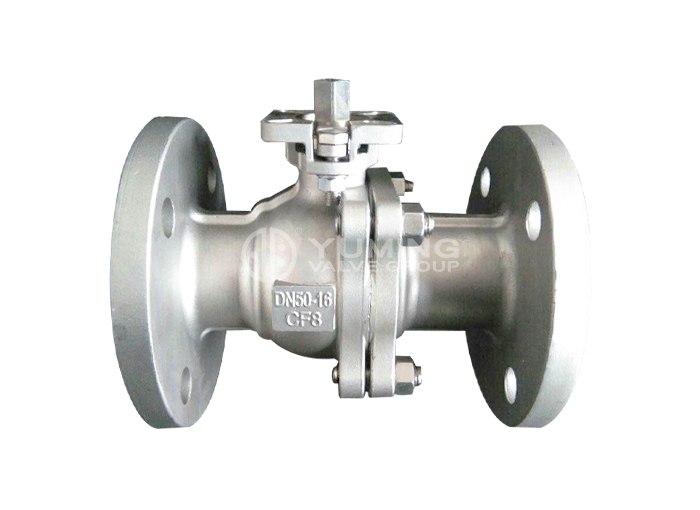

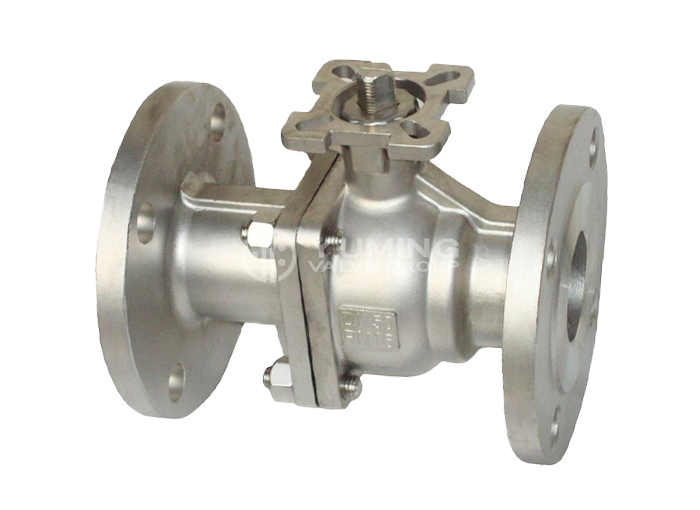

| Давление:Ру16 | |||||||||

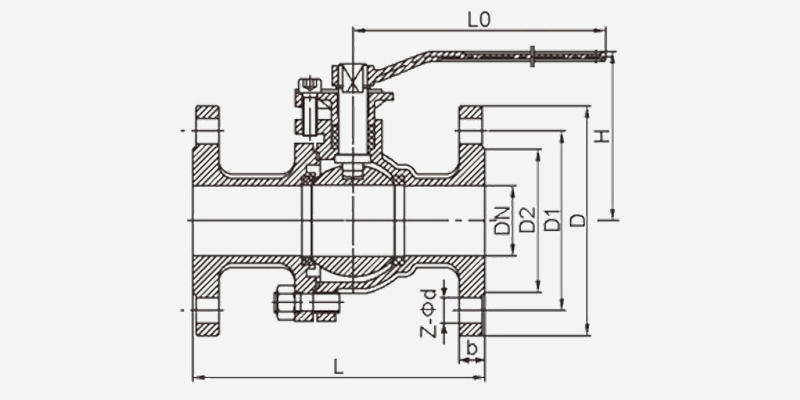

| РАЗМЕР | Ду | L | D | D1 | D2 | b | Z-Ø d | H | LO |
| 1/2” | 15 | 130 | 95 | 65 | 45 | 14 | 4-ø 14 | 78 | 140 |
| 3/4” | 20 | 130 | 105 | 75 | 55 | 14 | 4-ø 14 | 84 | 160 |
| 1” | 25 | 140 | 115 | 85 | 65 | 14 | 4-ø 14 | 95 | 180 |
| 1 1/4” | 32 | 165 | 135 | 100 | 78 | 16 | 4-0 18 | 150 | 250 |
| 1 1/2" | 40 | 165 | 145 | 110 | 85 | 16 | 4-ø 18 | 150 | 300 |
| 2” | 50 | 203 | 160 | 125 | 100 | 16 | 4-0 18 | 170 | 350 |
| 2 1/2” | 65 | 222 | 180 | 145 | 120 | 18 | 4-0 18 | 195 | 350 |
| 3” | 80 | 241 | 195 | 160 | 135 | 20 | 8-0 18 | 215 | 400 |
| 4” | 100 | 305 | 215 | 180 | 155 | 20 | 8-ø 18 | 250 | 500 |
| 5” | 125 | 356 | 245 | 210 | 185 | 22 | 8-0 18 | 265 | 600 |
| 6” | 150 | 394 | 280 | 240 | 210 | 24 | 8-ø 23 | 270 | 800 |
| 8" | 200 | 457 | 335 | 295 | 265 | 24 | 12-ø 23 | 330 | 800 |
| 10" | 250 | 533 | 405 | 355 | 320 | 26 | 12-ø 25 | 450 | 1300 |
| Давление:Ру25 | |||||||||
| РАЗМЕР | Ду | L | D | D1 | D2 | b | Z-Ø d | H | LO |
| 1/2” | 15 | 130 | 95 | 65 | 45 | 16 | 4-ø 14 | 103 | 100 |
| 3/4” | 20 | 130 | 105 | 75 | 55 | 16 | 4-ø 14 | 112 | 160 |
| 1” | 25 | 140 | 115 | 85 | 65 | 16 | 4-ø 14 | 123 | 160 |
| 1 1/4” | 32 | 165 | 135 | 100 | 78 | 18 | 4-ø 18 | 150 | 250 |
| 1 1/2" | 40 | 180 | 145 | 110 | 85 | 18 | 4-ø 18 | 156 | 250 |
| 2” | 50 | 200 | 160 | 125 | 100 | 20 | 4-0 18 | 172 | 350 |
| 2 1/2” | 65 | 220 | 180 | 145 | 120 | 22 | 8-0 18 | 197 | 350 |
| 3” | 80 | 250 | 195 | 160 | 135 | 22 | 8-ø 18 | 222 | 450 |
| 4” | 100 | 280 | 230 | 190 | 160 | 24 | 8-0 18 | 253 | 450 |
| 5” | 125 | 320 | 270 | 220 | 188 | 28 | 8-0 25 | 275 | 600 |
| 6” | 150 | 360 | 300 | 25 | 218 | 30 | 8-0 25 | 286 | 800 |
| 8” | 200 | 400 | 360 | 310 | 278 | 34 | 12-ø 25 | 340 | 1200 |
| 10” | 250 | 530 | 425 | 370 | 332 | 36 | 12-ø 30 | 470 | 1400 |
| Давление:Ру40 | |||||||||
| РАЗМЕР | Ду | L | D | D1 | D2 | b | Z-Ø d | H | LO |
| 1/2" | 15 | 140 | 95 | 65 | 45 | 16 | 4-ø 14 | 103 | 100 |
| 3/4" | 20 | 152 | 105 | 75 | 55 | 16 | 4-0 14 | 112 | 160 |
| 1” | 25 | 165 | 115 | 85 | 65 | 16 | 4-ø 14 | 123 | 160 |
| 1 1/4” | 32 | 178 | 135 | 100 | 78 | 18 | 4-ø 18 | 150 | 250 |
| 1 1/2" | 40 | 190 | 145 | 110 | 85 | 18 | 4-ø 18 | 156 | 250 |
| 2” | 50 | 216 | 160 | 125 | 100 | 20 | 4-ø 18 | 172 | 350 |
| 2 1/2” | 65 | 241 | 180 | 145 | 12 | 22 | 8-0 18 | 197 | 350 |
| 3” | 80 | 2836 | 195 | 160 | 135 | 22 | 8-0 18 | 222 | 450 |
| 4” | 100 | 305 | 230 | 190 | 160 | 24 | 8-ø 23 | 253 | 450 |
| 5” | 125 | 381 | 270 | 220 | 188 | 28 | 8-0 25 | 275 | 600 |
| 6” | 150 | 403 | 300 | 250 | 218 | 30 | 8-ø 25 | 286 | 800 |
| 8 - | 200 | 502 | 375 | 320 | 282 | 38 | 12-ø 30 | 340 | 1200 |
| 10” | 250 | 568 | 445 | 385 | 345 | 42 | 12-ø 34 | 470 | 1400 |
